May 20, 2025Green Rail Transit Solutions: Reducing Carbon Footprints
Rail networks are expanding worldwide in both urban and rural areas, offering an efficient and cost-effective way for people to travel for work and leisure. However, despite the potential of railways as a more sustainable alternative to flying or driving, many rail networks still use legacy fossil fuel systems with a high carbon footprint.
In continuing to rely on outdated diesel-powered trains, transit authorities are missing out on significant environmental and operational gains. The answer? Green railway solutions.
As technologies advance, several environmentally-friendly alternatives to diesel are now available. These include electrification, hydrogen power, and regenerative systems. These solutions offer a quantifiable reduction in carbon emissions, significant efficiency gains, and future cost savings.
What Is Green Rail Transit?
When we mention green railways, we refer to any environmentally friendly solution that relies on clean or renewable energy instead of harmful fossil fuels. This includes electrified railways, battery and hydrogen-powered trains, and integrated energy recovery systems.
There are four core technologies currently in use under this umbrella.
Electrification is the most common type of green rail transit. According to the International Energy Agency, electric rail accounted for 85% of passenger rail services and 55% of freight rail as of 2023. This includes both overhead catenary and third-rail systems.

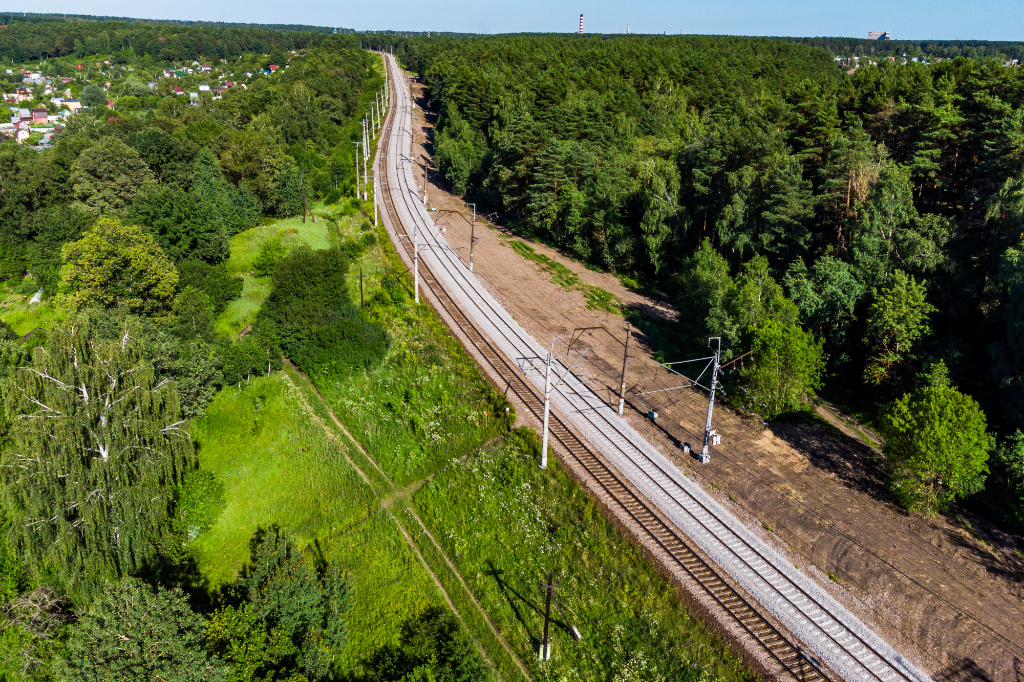

Overhead catenary systems (OCS) are primarily used above ground and rely on a system of wires suspended above the tracks to deliver power to the trains via an apparatus called a pantograph. Third rail systems, on the other hand, utilize a live electrified rail alongside the two "running rails", which delivers electricity to power the trains. Third rail systems are commonly used in subways and underground transit networks.
Onboard battery storage and supercapacitors are increasingly used to reduce reliance on external power sources such as third rails or overhead catenary rails. They provide a long-term energy storage solution, increase energy efficiency, and lower infrastructure costs. Onboard batteries can also provide a backup power source in the event of power outages on other types of electrified systems.
Hydrogen propulsion for trains is an emerging technology that is still in its early days but has tremendous promise. This solution uses high-pressure hydrogen fuel cells to convert hydrogen into power. Hydrogen is amongst the cleanest of all energy types, as its only byproduct is water vapor. One challenge facing the widespread adoption of hydrogen power lies in the need for advanced refueling infrastructure, including hydrogen production, storage, transportation, and dispensing solutions.
Finally, regenerative braking is an innovative technology that allows trains to convert the kinetic energy generated when they slow down into usable electrical power. This power can be stored in a battery or fed back into the grid and reused, reducing overall energy consumption. Regenerative braking systems can have a higher upfront cost than other technologies but offer significant long-term energy savings over traditional brakes.
Technical Performance Metrics for Energy-Efficient Green Rail Transit
All of the green rail transit technologies we have mentioned offer tremendous potential for reducing reliance on diesel fuel and creating cleaner, greener, and more efficient railway networks. In this section, we will consider some key performance metrics for these technologies to showcase how they can save energy, fight climate change, and provide more reliable transport solutions.
Carbon Emissions: Reducing Rail Carbon Footprint
One of the main driving factors in the adoption of green technologies is the reduction of harmful greenhouse gas emissions. Green rail transit can significantly lower these emissions, making railways the most environmentally friendly way to travel.
Exact figures can be challenging to determine as they depend on many factors, including the type of railway system, the type of renewable or green fuel being used, and the distances being traveled.
One 2023 report by the United Kingdom's Campaign for Better Transport showed that the average electric train produces 27.12g (0.059lb) of CO₂ per passenger km, while a diesel train produces 106g (0.233lb) or almost four times as much. This amounts to a saving of around 87 tons (174,000lb) of CO₂ per million passenger km (or 621,300 passenger miles.)
In assessing the reduction in carbon emissions provided by green rail transit solutions, it is essential to consider the entire lifecycle of the system. This means including the vehicle, the infrastructure, and the energy mix in the final calculation. Even with these considerations, all available data shows that green alternatives are an effective way to reduce emissions and slow the transport industry's impact on climate change.
Fuel Efficiency and Energy Efficiency
Green rail transit solutions are far more energy efficient than diesel alternatives. A 2024 comparative analysis indicated that electric trains consumed 56% less energy than their diesel-powered counterparts, and hydrogen-fueled vehicles consumed 15% less. Biodiesel and biodiesel hybrid solutions also lowered energy consumption (Aredah, Du, Hegazi, List, and Rakha, 2024).
Similarly, current data indicates that regenerative braking can offer an impressive electricity recovery rate, returning 60-70% of the recovered kinetic energy to the grid.
Alternating current (AC) systems are typically more efficient than direct current (DC) alternatives, particularly in long-distance or high-speed rail transportation. They exhibit lower power losses and offer superior reliability. On the other hand, DC systems are useful for the lower speeds and shorter distances of local transport networks.
Reliability and Maintenance
Reliability is crucial for public transportation, with millions of people relying on it daily to commute to work, visit friends and family, and engage in leisure activities. This means that uptime, or mean time between failures (MTBF), is a critical measure in assessing the performance of green rail transit systems.
High downtime rates can damage transit companies' reputations and inconvenience customers. They can also significantly impact scheduled and unscheduled maintenance costs.
Current data indicates that electrified railways can be 40% to 300% more reliable than diesel locomotives. This is due to lower maintenance requirements, a lighter axle load, and fewer moving parts.
The Core Engineering Benefits of Green Rail Networks
Green rail transit solutions benefit passengers, businesses, the environment, and transport agencies alike. In this section, we will consider some of their key engineering benefits.
Grid and Renewable Integration
Unlike older diesel trains, modern green railway solutions are compatible with renewable energy sources. Smart grid connectivity can also enable optimized energy use. All of this contributes towards lower emissions and increased energy efficiency.
Effective load balancing is essential as electric vehicles can draw significant power from the grid. Load balancing helps to prevent overloading, ensure a reliable transport system, and integrate more green vehicles into a transit network.
Modularity and Scalability
Moving away from diesel trains and towards renewable and sustainable alternatives is a tremendous undertaking for governments, transit authorities, and transport companies. It is an ongoing process that is likely to take many years.
The modularity and scalability of many green rail transit solutions enable the phased adoption of these technologies without the need to replace vehicles, fleets, or infrastructure entirely. Many transit authorities are installing modular battery or hydrogen retrofits into their existing fleets.
Noise and Vibration Reduction
Diesel trains with internal combustion engines can be loud, contributing to noise pollution and negatively impacting the local community, particularly in urban areas. On the other hand, electrical energy is very quiet, making it an excellent choice for urban and suburban rail networks in highly populated areas.
Green rail transit solutions also produce fewer vibrations. This reduces the wear and tear on tracks and vehicles, leading to better long-term track and equipment preservation.
Eliminating Fossil Fuels: Climate Change, Sustainability and Compliance
One of the most significant motivating factors in moving away from diesel trains and towards green alternatives is the increasing urgency of fighting climate change. Green rail transit solutions can help transport companies and authorities meet sustainability goals and ensure regulatory compliance in an increasingly eco-conscious world.
Meeting Regulations
Governments worldwide, including in the US, EU, and Asia, are issuing emissions mandates that require companies to adopt more sustainable practices. Green rail transit solutions assist in achieving these goals.
ISO 14001 is a globally recognized standard for environmental management systems and environmental impact reporting. Transitioning away from diesel and towards green alternatives ensures that companies and transport authorities remain ISO 14001-compliant.
Circular Economy Measures
A circular economy is a system that relies on reusing, recycling, and repurposing goods rather than throwing them away. Green rail transit can contribute to the circular economy when it is approached mindfully. For example, batteries can be recycled at the end of their lives, and sustainable materials can be utilized in track and train design.
Environmental Impact Studies
As mentioned, green rail transit represents a far more environmentally friendly transportation solution than diesel trains or other fossil fuel-powered transport modes such as personal cars and air travel. They can also represent a positive change for local ecosystems and communities.
For example, researchers at the University of Oxford found that electrified trains "have virtually zero impact on local air quality at point of use" (Givoni, Brand, and Watkiss, 2009).
Process Efficiency and Economic Gains
Economic factors also play a crucial role for transport businesses and public transit authorities. Green rail transit systems can improve process efficiency and give these organizations a financial advantage.
Operational Cost Reductions
The relative cost-effectiveness of diesel, hydrogen, and electrified trains depends on several factors. Electric and hydrogen rail solutions are ultimately more cost-effective over time than diesel.
In addition, the efficiency gains offered by predictive and condition-based maintenance can significantly reduce downtime, making services more reliable and ensuring that companies do not lose money to costly outages.
Throughput and Service Frequency
The improved acceleration and deceleration offered by green vehicles enable higher schedule density, allowing more trains to operate. This can offer a greater throughput of passengers and greater service frequency. It can also reduce dwell time at stations and turnaround times between journeys.
Total Cost of Ownership (TCO)
Some companies and authorities are put off by the higher upfront costs associated with electric vehicles and other green rail transit modes. However, this is a short-sighted approach that does not consider the total cost of ownership (TCO) over time.
When the long-term operational savings are considered, the TCO of green vehicles is generally far lower than the TCO for equivalent diesel vehicles.
One study on the near-term potential of electric transit found that "switching to battery-electric propulsion would save the US freight rail sector US$94 billion over 20 years" (Popovich, Rajagopal, Tasar & Phadke, 2021). Another reported that over a 30-year lifespan, an electric vehicle could save £2-3 million ($2.6 - $4 million), assuming an average of 300-500 miles traveled per day (Shirres, Keenor, Dolphin & Hooper, 2021).
Supply Chain and Project Implementation
Implementing green rail solutions is a complex process that requires careful planning and significant financial investment. Projects can take several years to complete and are usually rolled out in stages to minimize disruption to passenger transport and freight rail supply chains.
In this section, we will look at some of the critical things that transit companies and authorities need to know as they work towards implementing these systems.
Sourcing and Reliability
A green rail transit system contains numerous specialist components, potentially involving a large chain of suppliers and manufacturers. Supply chain issues, workforce challenges, and unreliable funding sources over the project's lifetime can all introduce significant challenges.
Transit companies and authorities must carefully assess their chosen vendors, auditing them for quality, qualifications, and reliability.
MAC Impulse is proud to be a leading supplier of components and solutions for electrified and green rail transit, including bespoke and hard-to-find components.
Project Phasing and Timelines
An electric transit project includes several distinct phases, including design, commissioning, sourcing, construction, testing, and rollout. Each of these stages can take several months or even longer. It is vital to plan ahead, create a realistic timeline, and implement strategies to minimize service interruptions to freight rail and passenger transport services.
Lifecycle Management
Once a green rail system is in place, ongoing asset health monitoring is essential to ensure it is properly cared for and maintained. Many organizations are now using "digital twins," or virtual representations of real-world objects or systems, to assist with smart and responsive lifecycle management and performance monitoring.
Planning for obsolescence and technological upgrades is also essential to maintaining an efficient and well-run transit network throughout its lifecycle.
Industry Applications and Case Studies
As more transport authorities worldwide adopt green rail solutions, the benefits are becoming increasingly apparent. In this section, we will examine some key use cases that highlight the tremendous potential of these technologies.
Urban Transit
The electrification of Metro networks and urban rail systems, along with energy recapture enabled by solutions such as regenerative braking systems, is helping towns and cities reduce their fuel consumption and lower their carbon emissions.
For example, we worked with the transit authority of a major city in the US. This city successfully slashed its emissions with a full-fleet green transition.
Regional and Freight Rail
Long-distance rail networks, such as regional and freight rail lines, are benefiting enormously from battery-electric and hydrogen power solutions.
CPKC, the first single-rail network connecting the United States, Canada, and Mexico, created a hydrogen locomotive program to cut greenhouse gas (GHG) emissions in the freight transportation sector, the first of its kind in North America. The company is also retrofitting existing diesel locomotives with zero-emission technology. CPKC intends to double its hydrogen fleet in 2025.
High-Speed Rail and Intercity Services Replacing Domestic Flights
High-speed rail and intercity services are efficient, convenient, environmentally friendly, and cost-effective alternatives to domestic flights and even some international flights.
Grid integration allows these high-speed routes to expand into new areas, serve more passengers, and provide a more reliable service. However, the US has historically lagged behind many other countries in implementing these networks. Lessons from international transit systems can play a vital role in increasing the rollout of similar services here in the US.
For example, the Eurostar is a transit system that connects major European cities including Paris, London, Amsterdam, Bruges, and Brussels. The Eurostar has been fully electric since its inception in 1994, and the company proudly claims that a train journey creates an average of 95% lower carbon emissions than taking a flight and 90% lower emissions than driving. Eurostar is committed to using 100% renewable energy by 2030 and is trialing innovative eco-driving technology to reduce energy usage by at least 5% on every journey.
Saving Money and Boosting Energy Efficiency with Regenerative Braking
Regenerative braking is an under-utilized technology that is slowly gaining in popularity due to the impressive energy efficiency and energy savings it can offer. One transit authority cut its per-passenger energy usage by an incredible 28% after a regenerative braking deployment across its fleet.
Implementation Guidelines from MAC Impulse, Your Leading Partner in Electrifying America's Transit
At MAC-IMPulse, we are proud to play a key role in implementing sustainable transportation by supplying assembly and component solutions for green rail transit systems. To conclude, we would like to share a few of our most essential guidelines on moving towards green transit networks.
Technology selection is vital. This means performing a comprehensive evaluation of the energy or electricity mix you will use, assessing grid readiness, and understanding the route characteristics of the area your system will serve.
When it is time to deploy, you will need to choose between retrofitting existing vehicles and commissioning new vehicle builds. Both systems have advantages and disadvantages in terms of cost and performance.
Interoperability and integration are critical and will determine how your new solutions integrate with and work with existing infrastructure. Poor interoperability will result in costly downtime and reliability issues.
Finally, quality control and performance monitoring must be comprehensive and ongoing. You will need to monitor key metrics such as your rail emissions reduction, total uptime, and cost over time. Leveraging technologies such as artificial intelligence (AI) and the Internet of Things (IoT) analytics can provide opportunities for continuous improvement.
If you would like to learn more about any of MAC-IMPulse's products or solutions or how we can collaborate to bring green rail transit to more towns and cities across America, please contact us today to speak to a member of our team.
